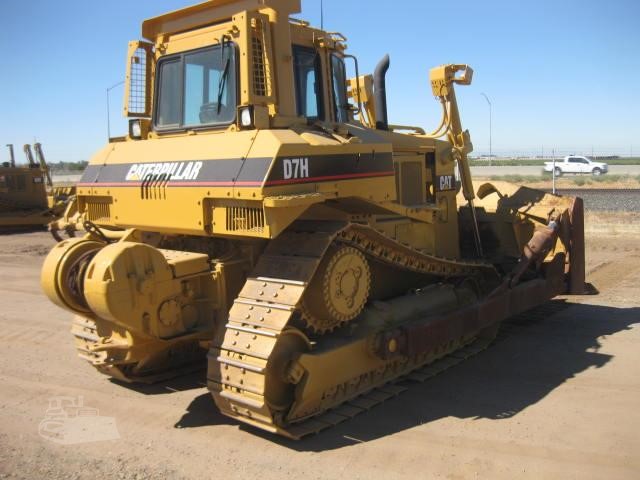

CAT D7 H

Dimensions
A. Length w/ Blade 18.2 ft in 5559 mm
B. Width Over Tracks  ft in  mm
C. Height to Top of Cab 10.9 ft in 3336 mm
D. Length of Track on Ground 9.5 ft in 2896 mm
E. Ground Clearance 1.3 ft in 403.5 mm
F. Length w/o Blade 15.2 ft in 4619 mm
Undercarriage
G. Track Gauge 6.5 ft in 1981 mm
H. Standard Shoe Size 20.1 in 510 mm
Category:

Product Description

Engine
Make Caterpillar
Model 3306
Gross Power 231 hp 172.3 kw
Net Power 215 hp 160.3 kw
Power Measured @ 2100 rpm
Displacement 640.7 cu in 10.5 L
Aspiration turbocharged
Number of Cylinders 6
Operational
Operating Weight 52134 lb 23647.6 kg
Fuel Capacity 128.9 gal 488 L
Cooling System Fluid Capacity 13.8 gal 52.4 L
Hydraulic Fluid Capacity 30.4 gal 115 L
Final Drives Fluid Capacity 2.5 gal 9.6 L
Operating Voltage 24 V
Alternator Supplied Amperage 35 amps
Transmission
Type Planetary powershift
Number of Forward Gears 3
Number of Reverse Gears 3
Max Speed – Forward 7.4 mph 11.9 km/h
Max Speed – Reverse 8.9 mph 14.3 km/h
Undercarriage
Ground Pressure 11.1 psi 76.2 kPa
Ground Contact Area 4560 in2 2.9 m2
Standard Shoe Size 20.1 in 510 mm
Number of Shoes per Side 40
Number of Track Rollers per Side 7
Track Gauge 6.5 ft in 1981 mm
Hydraulic System
Relief Valve Pressure 3300 psi 22752.7 kPa
Pump Flow Capacity 46.2 gal/min 175 L/min
Standard Blade
Width 12.5 ft in 3813 mm
Height 50.2 in 1276 mm
Capacity 5.9 yd3 4.5 m3
Blade Angle (both directions) 25 degrees
Cutting Depth 19.6 in 498 mm
Dimensions
Length w/o Blade 15.2 ft in 4619 mm
Length w/ Blade 18.2 ft in 5559 mm
Width Over Tracks  ft in  mm
Height to Top of Cab 10.9 ft in 3336 mm
Length of Track on Ground 9.5 ft in 2896 mm
Ground Clearance 1.3 ft in 403.5 mm
